CAT6A 4-pair UTP 23AWG 550MHz

Category:：Data Cable

Views：4957Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Bare solid copper conductor

◆ Colour-coded PE insulation

◆ Spline: HDPE

◆ Rip cord ( optional )

◆ Lead free PVC or LSOH jacket

◆ Flammability grade: CMX, CM, CMG, CMR

◆ Rated temperature: 60℃, 75℃

◆ Reference Standard: UL1581, UL444, TIA/EIA 568B

APPLICATION

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000Base-T ( Gigabit Ethernet )

155Mbps ATM

622Mbps ATM

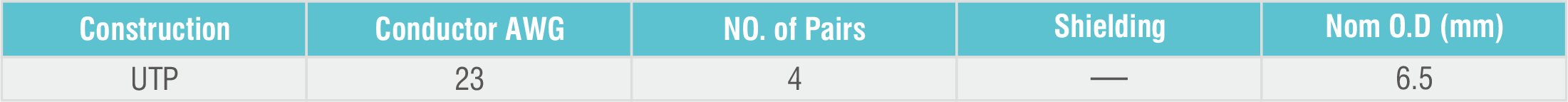

CABLE CONSTRUCTION ( UTP-CAT6A )

Construction	Conductor AWG	NO. of Pairs	NO. of Pairs	Nom O.D (mm)
UTP	23	4	----	6.5

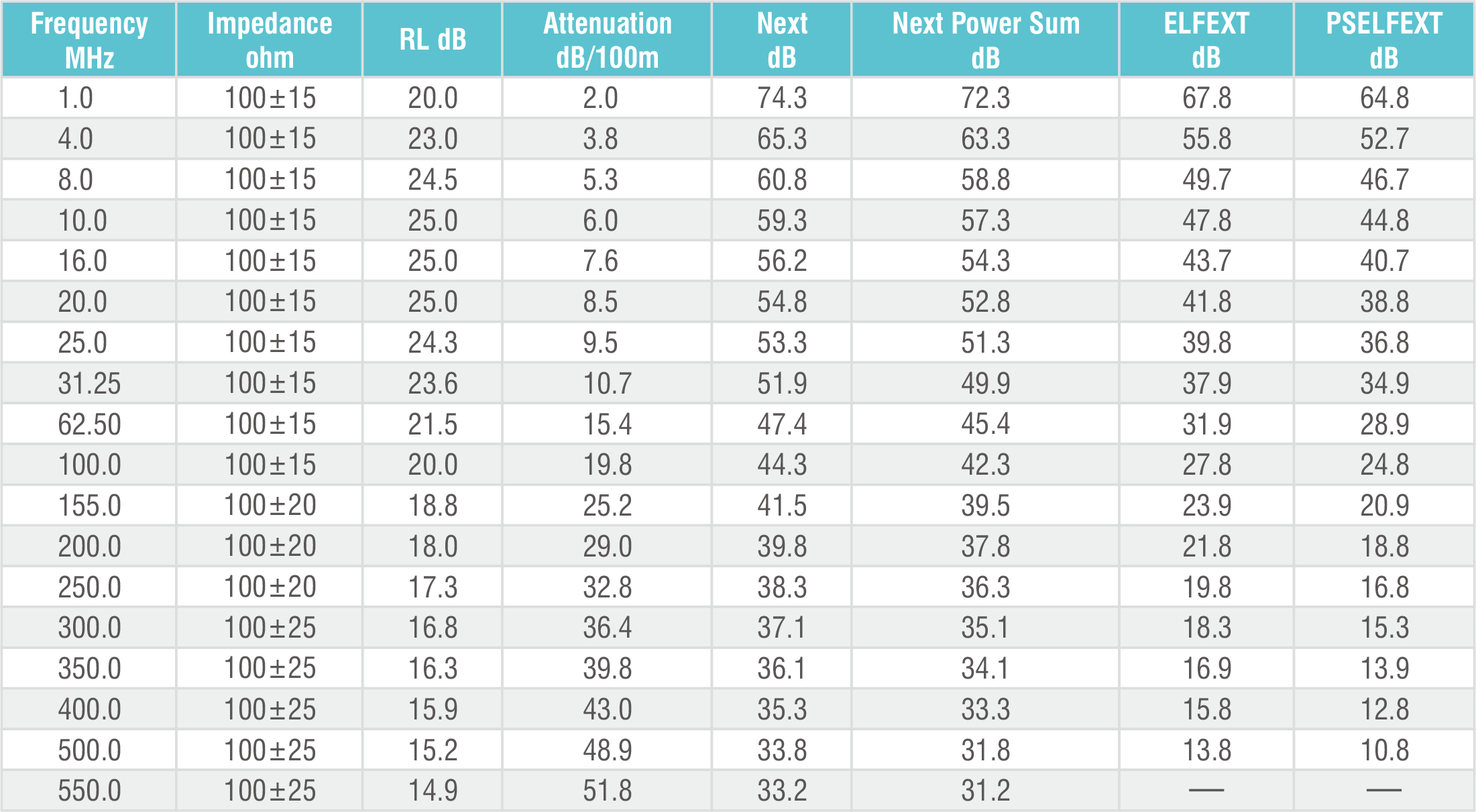

ELECTRICAL CHARACTERISTICS

\

Frequency MHz	Impedance ohm	RL dB	Attenuation dB/100m	Next dB	Next Power Sum dB	ELFEXT dB	PSELFEXT dB
1.0	100±15	20.0	2.0	74.3	72.3	67.8	64.8
4.0	100±15	23.0	3.8	65.3	63.3	55.8	52.7
8.0	100±15	24.5	5.3	60.8	58.8	49.7	46.7
10.0	100±15	25.0	6.0	59.3	57.3	47.8	44.8
16.0	100±15	25.0	7.6	56.2	54.3	43.7	40.7
20.0	100±15	25.0	8.5	54.8	52.8	41.8	38.8
25.0	100±15	24.3	9.5	53.3	51.3	39.8	36.8
31.25	100±15	23.6	10.7	51.9	49.9	37.9	34.9
62.50	100±15	21.5	15.4	47.4	45.4	31.9	28.9
100.0	100±15	20.0	19.8	44.3	42.3	27.8	24.8
155.0	100±20	18.8	25.2	41.5	39.5	23.9	20.9
200.0	100±20	18.0	29.0	39.8	37.8	21.8	18.8
250.0	100±20	17.3	32.8	38.3	36.3	19.8	16.8
300.0	100±25	16.8	36.4	37.1	35.1	18.3	15.3
350.0	100±25	16.3	39.8	36.1	34.1	16.9	13.9
400.0	100±25	15.9	43.0	35.3	33.3	15.8	12.8
500.0	100±25	15.2	48.9	33.8	31.8	13.8	10.8
550.0	100±25	14.9	51.8	33.2	31.2	----	----

Date Sheet
