CAT6A 4-pair FTP 23AWG 650MHz

Category:：Data Cable

Views：4765Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Bare solid copper conductor

◆ Colour-coded PE insulation

◆ Spline: HDPE

◆ Shield: PET/AL

◆ Drain wire: 0.5TC

◆ Rip cord ( optional )

◆ Lead free PVC or LSOH jacket

◆ Flammability grade: CMX, CM, CMG, CMR

◆ Rated temperature: 60℃, 75℃

◆ Reference Standard: UL1581, UL444, TIA/EIA 568B

APPLICATION

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000Base-T ( Gigabit Ethernet )

155Mbps ATM

622Mbps ATM

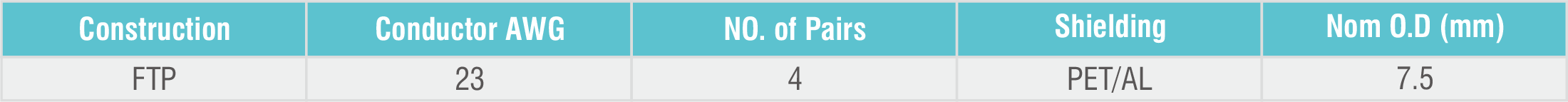

CABLE CONSTRUCTION ( FTP-CAT6A )

Construction	Conductor AWG	NO. of Pairs	Shielding	Nom O.D (mm)
FTP	23	4	PET/AL	7.5

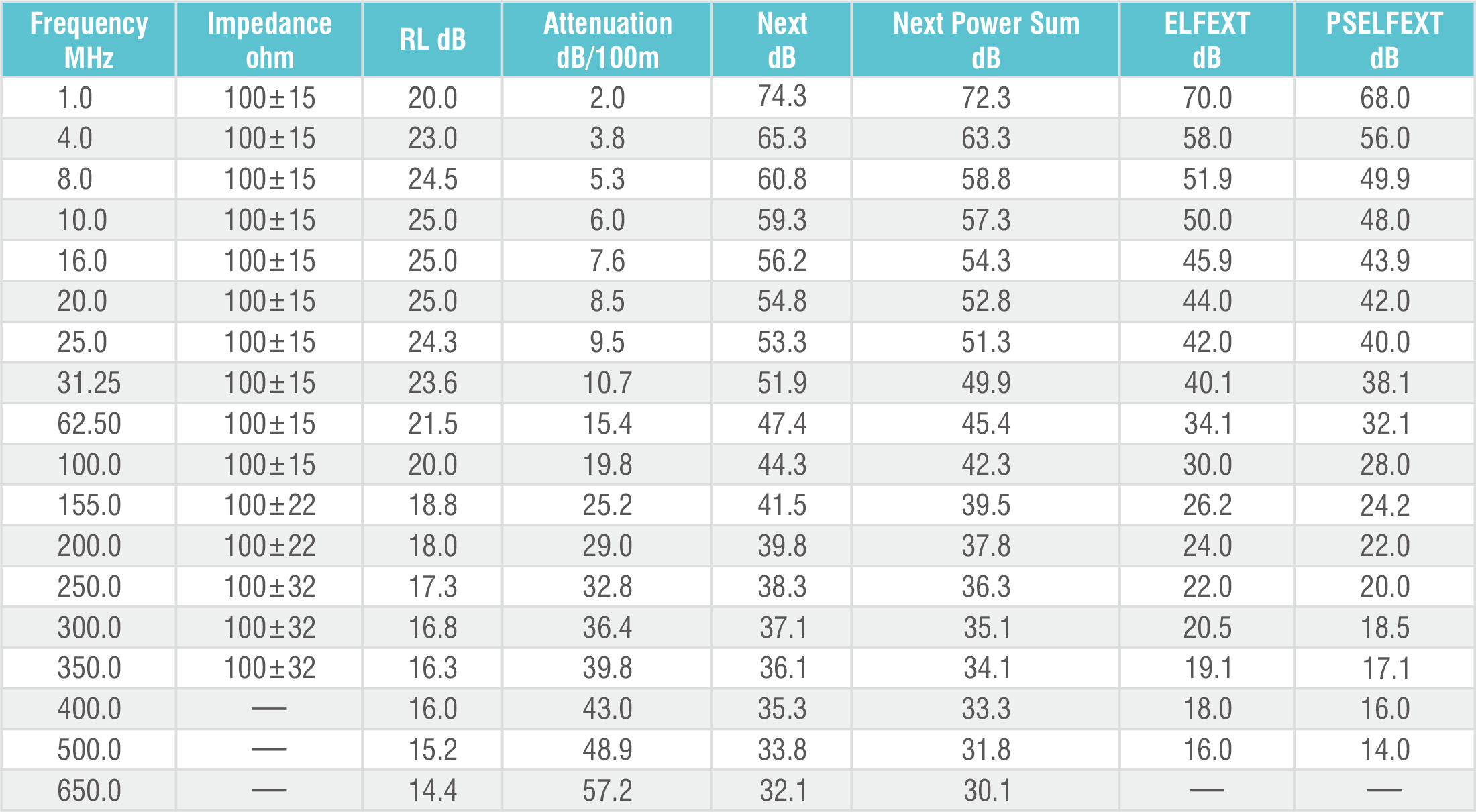

ELECTRICAL CHARACTERISTICS

Frequency MHz	Impedance ohm	RL dB	Attenuation dB/100m	Next dB	Next Power Sum dB	Next Power Sum dB	PSELFEXT dB
1.0	100±15	20.0	2.0	74.3	72.3	70.0	68.0
4.0	100±15	23.0	3.8	65.3	63.3	58.0	56.0
8.0	100±15	24.5	5.3	60.8	58.8	51.9	49.9
10.0	100±15	25.0	6.0	59.3	57.3	50.0	48.0
16.0	100±15	25.0	7.6	56.2	54.3	45.9	43.9
20.0	100±15	25.0	8.5	54.8	52.8	44.0	42.0
25.0	100±15	24.3	9.5	53.3	51.3	42.0	40.0
31.25	100±15	23.6	10.7	51.9	49.9	40.1	38.1
62.50	100±15	21.5	15.4	47.4	45.4	34.1	32.1
100.0	100±15	20.0	19.8	44.3	42.3	30.0	28.0
155.0	100±22	18.8	25.2	41.5	39.5	26.2	24.2
200.0	100±22	18.0	29.0	39.8	37.8	24.0	22.0
250.0	100±32	17.3	32.8	38.3	36.3	22.0	20.0
300.0	100±32	16.8	36.4	37.1	35.1	20.5	18.5
350.0	100±32	16.3	39.8	36.1	34.1	19.1	17.1
400.0	----	16.0	43.0	35.3	33.3	18.0	16.0
500.0	----	15.2	48.9	33.8	31.8	16.0	14.0
650.0	----	14.4	57.2	32.1	30.1	----	----

Date Sheet
