CAT7 4-pair FTP 23AWG 600MHz

Category:：Data Cable

Views：5120Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Bare solid copper conductor

◆ Foamed PE insulation

◆ lndividual Shield: PET/AL

◆ Drain wire: 7×0.2TC

◆ Overall Shield: TC Braid

◆ Rip cord ( optional )

◆ Lead free PVC or LSOH jacket

◆ Rated temperature: 60℃, 75℃

◆ Flammability grade: CMX, CM, CMG, CMR

◆ Reference Standard: UL1581, UL444, TIA/EIA 568B

APPLICATION

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000Base-T ( Gigabit Ethernet )

155Mbps ATM

622Mbps ATM

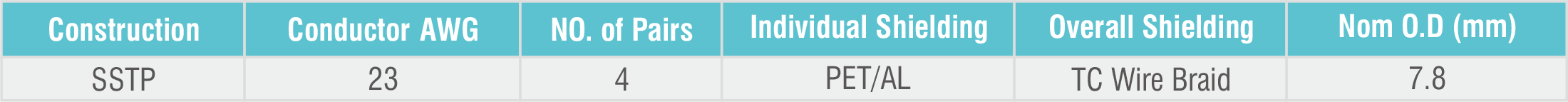

CABLE CONSTRUCTION ( CAT7 )

Construction	Conductor AWG	NO. of Pairs	Individual Shielding	Overall Shielding	Nom O.D (mm)
SSTP	23	4	PET/AL	TC Wire Braid	7.8

ELECTRICAL CHARACTERISTICS

Frequency MHz	Impedance ohm	Attenuation dB/100m	Next dB	ACR dB
1.0	100±15	2.0	80.0	78.0
4.0	100±15	3.8	80.0	76.2
10.0	100±15	6.0	80.0	74.0
16.0	100±15	7.6	80.0	72.4
20.0	100±15	8.5	80.0	71.5
31.25	100±15	10.6	80.0	69.4
62.50	100±15	15.1	75.5	60.4
100.0	100±15	19.3	72.4	53.1
155.0	100±25	24.2	69.6	45.3
200.0	100±25	27.7	67.9	40.2
300.0	100±25	34.4	65.3	30.9
600.0	100±25	50.0	60.8	10.7

Date Sheet
