PHOTOVOLTAIC POWER CABLE 1000V TUV (Thin-walled)

Category:：PV Cable

Views：5150Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

APPLICATlON

Double insulation, electron-beam cross-linked cables for Photovoltaic power applications. With reduced diameter and integrated jacket.

CONSTRUCTION

◆ Conductor: Tinned fine copper strands, according to VDE 0295/IEC 60228, class 5

◆ Insulation: polyolefin copolymer electron-beam cross-linked

◆ Jacket: polyolefin copolymer electron-beam cross-linked, UV and ozone resistant

◆ Jacket colour: all colour

TECHNICAL SPECIFICATION

◆ Nominal voltage: U /U=600/1000V AC , 1000/1800V DC

◆ Test voltage: 6500V , 50HZ , 5min

◆ Max. conductor temperature: -40℃ up to +120℃

◆ Ambient temperature: -40℃ up to +90℃

◆ Max. Short circuit temperature: 280℃

◆ Bending radius: fixed installation>4×Φ Occasionally moved>5×Φ

MATERIAL PROPERTIES/STANDARDS

◆ Fire performance: IEC 60332-1

◆ Smoke emission: IEC 61034 ; EN 50268-2

◆ Low fire load: DIN 51900

◆ Approvals: VDE-AR-E 2283-4 PV1-F

◆ Application standards: UNE 21123 ; UNE 20.460-5-52, UTEC 32-502

ADVANTAGES

◆ Electron-beam cross-linked compounds

◆ UV, ozone and hydrolysis resistant

◆ High temperature resistant, the materials do not melt or flow

◆ Very long service life >25 years at 90℃

◆ Compatible to all popular connectors

◆ Flexible and space-saving installation

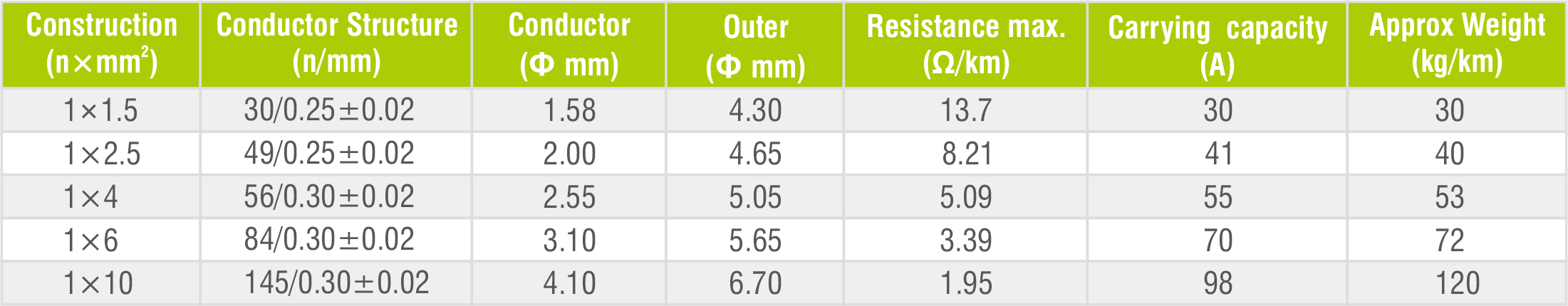

DIMENSIONS, PARAMETER

Construction 2 (n×mm )	Conductor Structure (n/mm)	Conductor (Φ mm)	Outer (Φ mm)	Resistance max. (Ω/km)	Carrying capacity (A)	Approx Weight (kg/km)
1×1.5	30/0.25±0.02	1.58	4.30	13.7	30	30
1×2.5	49/0.25±0.02	2.00	4.65	8.21	41	40
1×4	56/0.30±0.02	2.55	5.05	5.09	55	53
1×6	84/0.30±0.02	3.10	5.65	3.39	70	72
1×10	84/0.30±0.02	4.10	6.70	1.95	98	120

Date Sheet
