SYT2 5 2 AWG20

Category:：Telephone Cable

Views：5049Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Tinned or bare, stranded or solid copper conductor, 24~20 AWG

◆ Solid or foam PE insulation

◆ PET foil

◆ AWG25 TC

◆ Blue surface mylar aluminum wrapping

◆ Rip cord

◆ Leed free PVC or non-migration PVC Inner jacket

◆ Steel tape armouring

◆ Leed free PVC or non-migration PVC outer jacket

ELECTRICAL CHARACTERISTICS

◆ Voltage Test: 1500Vcc/min

◆ Minimum insulation resistance at 20℃: 1500M Ω.km

◆ Mutual capacity of the pairs: <57.5nF/km

APPLICATlON

For internal wiring of electronic and electrical equipment.

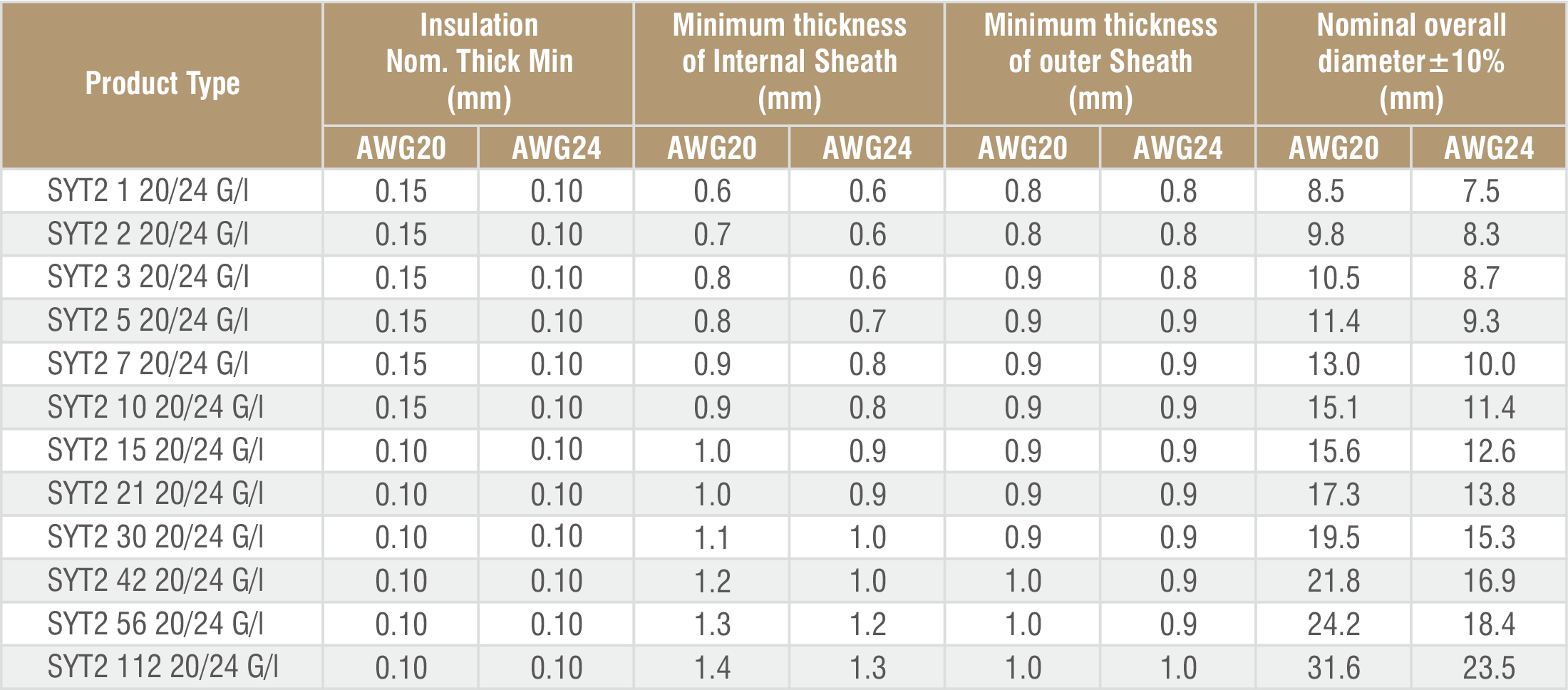

Product Type	Insulation Nom. Thick Min (mm)		Minimum thickness of Internal Sheath (mm)		Minimum thickness of outer Sheath (mm)		Nominal overall diameter±10% (mm)
Product Type	AWG20	AWG24	AWG20	AWG24	AWG20	AWG20	AWG20	AWG24
SYT2 1 20/24 G/l	0.15	0.10	0.6	0.6	0.8	0.8	8.5	7.5
SYT2 2 20/24 G/l	0.15	0.10	0.7	0.6	0.8	0.8	9.8	8.3
SYT2 3 20/24 G/I	0.15	0.10	0.8	0.6	0.9	0.8	10.5	8.7
SYT2 5 20/24 G/l	0.15	0.10	0.8	0.7	0.9	0.9	11.4	9.3
SYT2 7 20/24 G/l	0.15	0.10	0.9	0.8	0.9	0.9	13.0	10.0
SYT2 10 20/24 G/l	0.15	0.10	0.9	0.8	0.9	0.9	15.1	11.4
SYT2 15 20/24 G/l	0.10	0.10	1.0	0.9	0.9	0.9	15.6	12.6
SYT2 21 20/24 G/	0.10	0.10	1.0	0.9	0.9	0.9	17.3	13.8
SYT2 30 20/24 G/l	0.10	0.10	1.1	1.0	0.9	0.9	19.5	15.3
SYT2 42 20/24 G/l	0.10	0.10	1.2	1.0	1.0	0.9	21.8	16.9
SYT2 56 20/24 G/l	0.10	0.10	1.3	1.2	1.0	0.9	24.2	18.4
SYT2 112 20/24 G/l	0.10	0.10	1.4	1.3	1.0	1.0	31.6	23.5

Date Sheet
