CAT6 4-pair FTP 23AWG 250MHz

Category:：Data Cable

Views：4722Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Bare solid copper conductor

◆ Colour-coded PE insulation

◆ Spline: HDPE

◆ Shield: PET/AL

◆ Drain wire: 0.5TC

◆ Rip cord ( optional )

◆ Lead free PVC or LSOH jacket

◆ Flammability grade: CMX, CM, CMG, CMR

◆ Rated temperature: 60℃, 75℃

◆ Reference Standard: UL1581, UL444, TIA/EIA 568B

APPLICATION

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000Base-T ( Gigabit Ethernet )

155Mbps ATM

622Mbps ATM

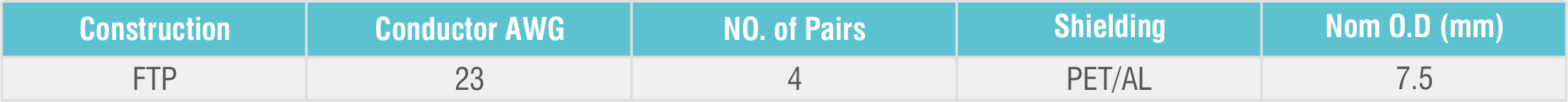

CABLE CONSTRUCTION ( FTP-CAT6 )

Construction	Conductor AWG	NO. of Pairs	Shielding	Nom O.D (mm)
FTP	23	4	PET/AL	7.5

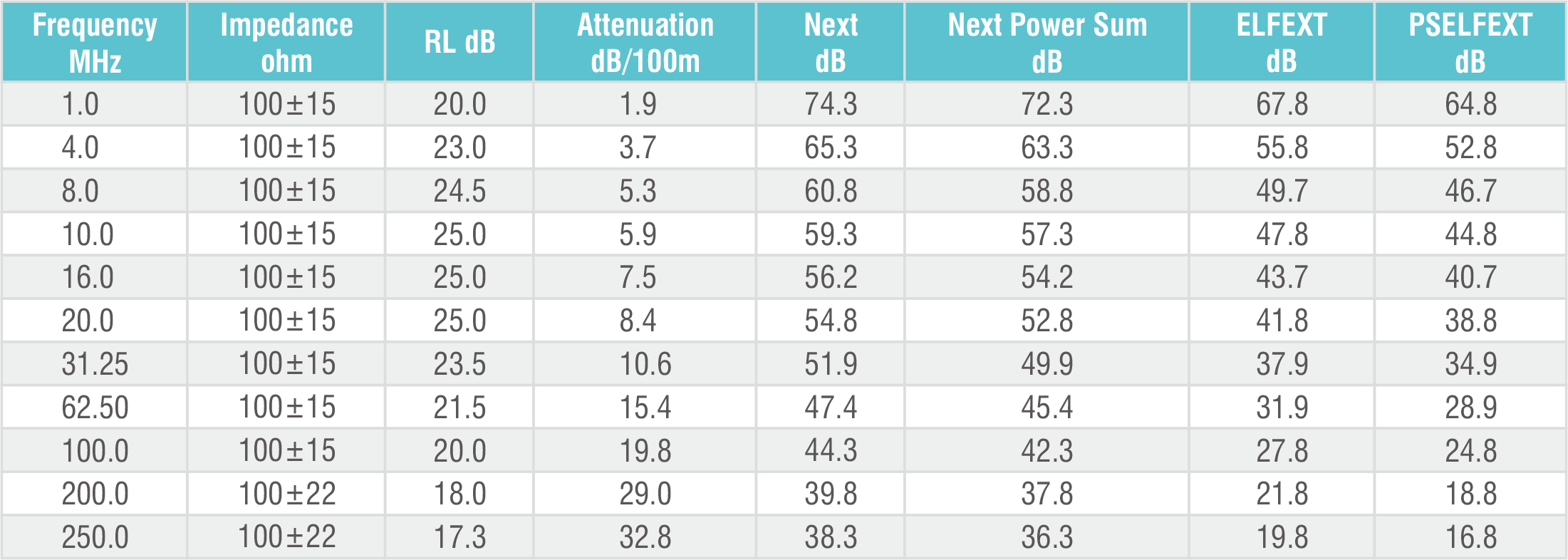

ELECTRICAL CHARACTERISTICS

Frequency MHz	Impedance ohm	RL dB	Attenuation dB/100m	Next dB	Next Power Sum dB	ELFEXT dB	PSELFEXT dB
1.0	100±15	20.0	1.9	74.3	72.3	67.8	64.8
4.0	100±15	23.0	3.7	65.3	63.3	55.8	52.8
8.0	100±15	24.5	5.3	60.8	58.8	49.7	46.7
10.0	100±15	25.0	5.9	59.3	57.3	47.8	44.8
16.0	100±15	25.0	7.5	56.2	54.2	43.7	40.7
20.0	100±15	25.0	8.4	54.8	52.8	41.8	38.8
31.25	100±15	23.5	10.6	51.9	49.9	37.9	34.9
62.50	100±15	21.5	15.4	47.4	45.4	31.9	28.9
100.0	100±15	20.0	19.8	44.3	42.3	27.8	24.8
200.0	100±22	18.0	29.0	39.8	37.8	21.8	18.8
250.0	100±22	17.3	32.8	38.3	36.3	19.8	16.8

Date Sheet
