CAT5E 4-pair UTP 24AWG 350MHz

Category:：Data Cable

Views：4907Times

Release Date：2020-12-20

Contact Us

Detailed Introduction

PRODUCT DESCRIPTION

◆ Bare solid copper conductor

◆ Colour-coded PE insulation

◆ Rip cord ( optional )

◆ Lead free PVC or LSOH jacket

◆ Flammability grade: CMX, CM, CMG, CMR

◆ Rated temperature: 60℃, 75℃

◆ Reference Standard: UL1581, UL444, TIA/EIA 568B

APPLICATION

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000Base-T ( Gigabit Ethernet )

155Mbps ATM

622Mbps ATM

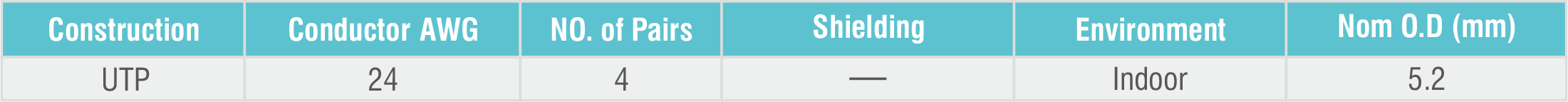

CABLE CONSTRUCTION ( Enhanced CAT5E )

Construction	Conductor AWG	NO. of Pairs	Shielding	Environment	Nom O.D (mm)
UTP	24	4	----	Indoor	5.2

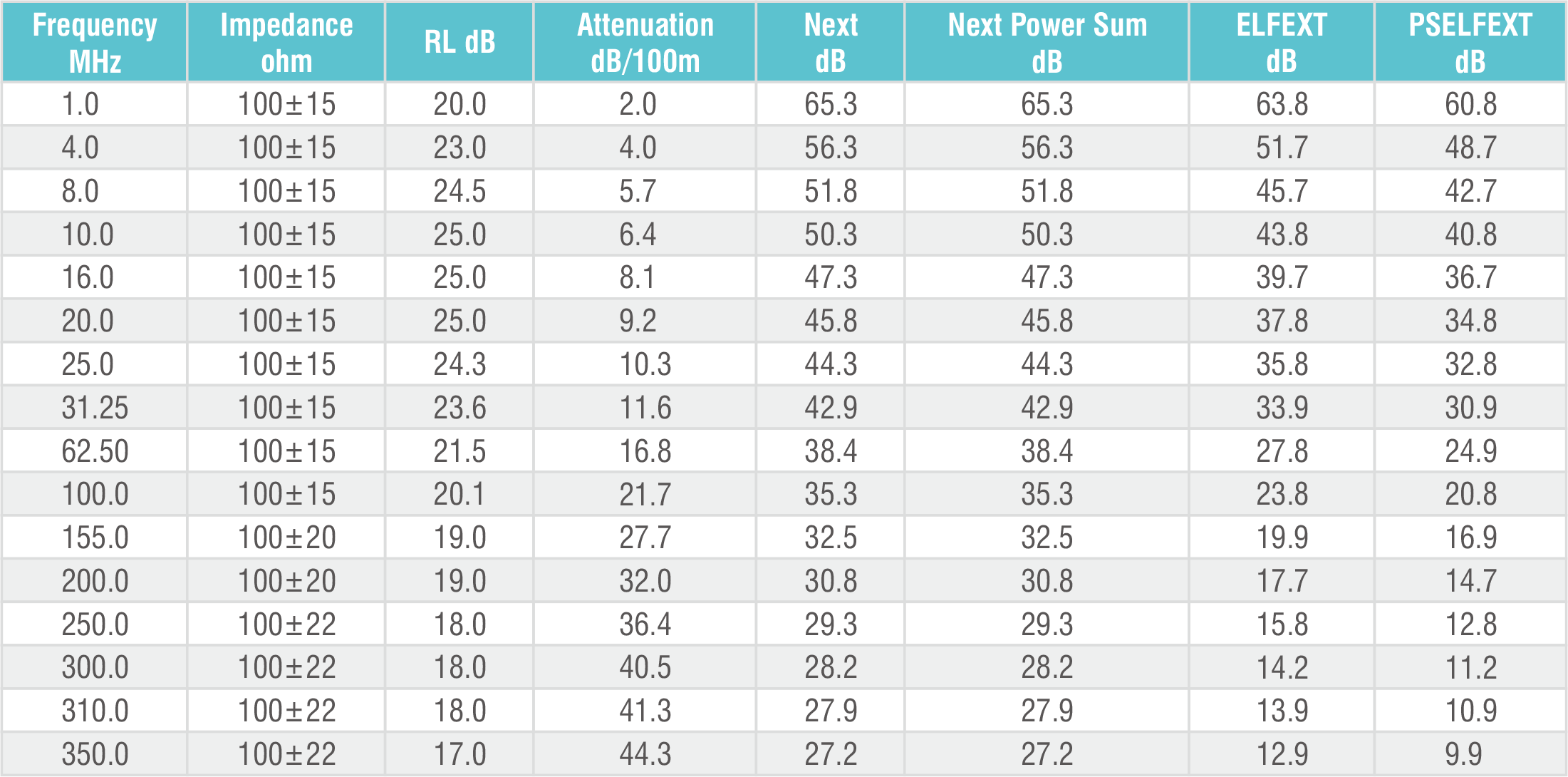

ELECTRICAL CHARACTERISTICS

Frequency MHz	Impedance ohm	RL dB	Attenuation dB/100m	Next dB	Next Power Sum dB	ELFEXT dB	PSELFEXT dB
1.0	100±15	20.0	2.0	65.3	65.3	63.8	60.8
4.0	100±15	23.0	4.0	56.3	56.3	51.7	48.7
8.0	100±15	24.5	5.7	51.8	51.8	45.7	42.7
10.0	100±15	25.0	6.4	50.3	50.3	43.8	40.8
16.0	100±15	25.0	8.1	47.3	47.3	39.7	36.7
20.0	100±15	25.0	9.2	45.8	45.8	37.8	34.8
25.0	100±15	24.3	10.3	44.3	44.3	35.8	32.8
31.25	100±15	23.6	11.6	42.9	42.9	33.9	30.9
62.50	100±15	21.5	16.8	38.4	38.4	27.8	24.9
100.0	100±15	20.1	21.7	35.3	35.3	23.8	20.8
155.0	100±20	19.0	27.7	32.5	32.5	19.9	16.9
200.0	100±20	19.0	32.0	30.8	30.8	17.7	14.7
250.0	100±22	18.0	36.4	29.3	29.3	15.8	12.8
300.0	100±22	18.0	40.5	28.2	28.2	14.2	11.2
310.0	100±22	18.0	41.3	27.9	27.9	13.9	10.9
350.0	100±22	17.0	44.3	27.2	27.2	12.9	9.9

Date Sheet
